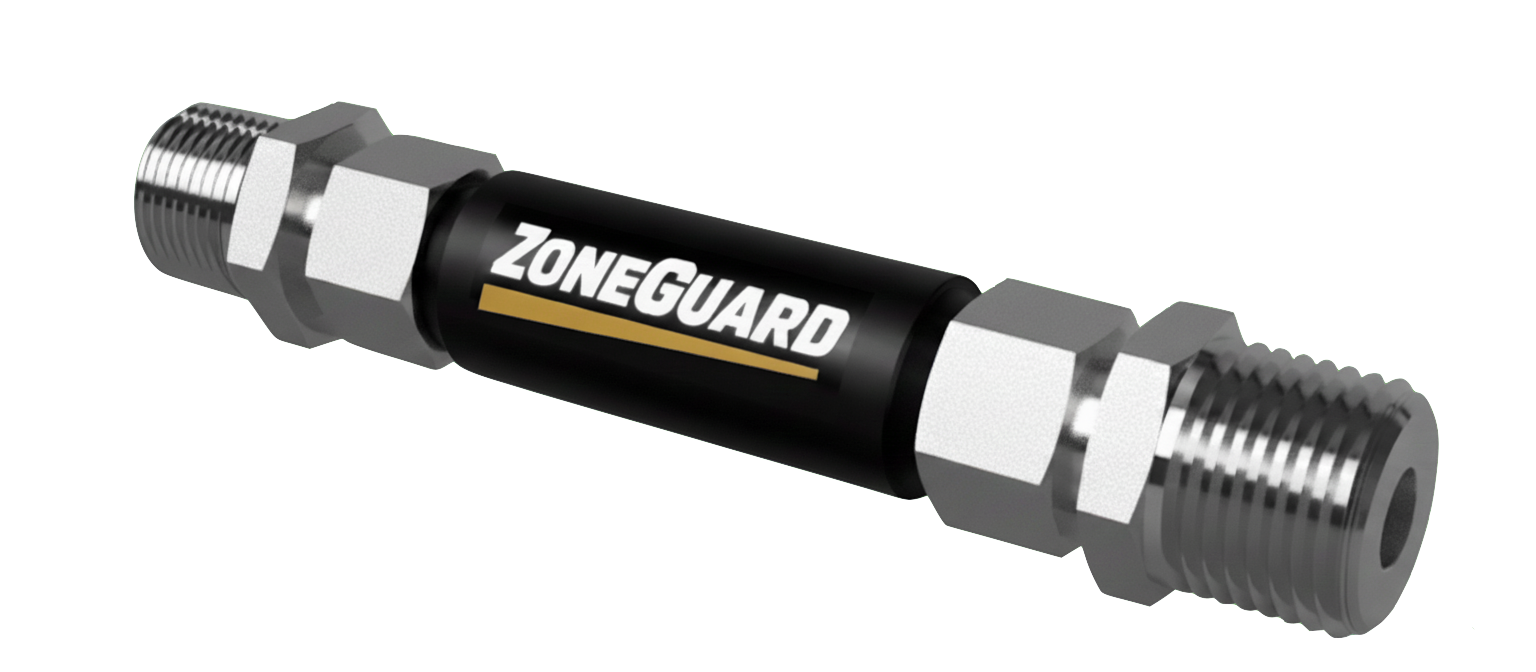

The Stanley Fisher ZoneGuard Mini is a compact point-of-use water crystallizer engineered to prevent scale formation in residential fixtures and appliance applications. Designed for single-line installation, ZoneGuard Mini delivers reliable scale control without chemicals, salt, or electricity.
Utilizing advanced catalytic crystallization technology, dissolved hardness minerals are converted into stable microscopic crystals that remain suspended in the water rather than adhering to heating elements, internal components, and plumbing surfaces.
Ideal for tankless water heaters, coffee machines, ice makers, under-sink installations, and RV water systems, ZoneGuard Mini provides maintenance-free protection in compact, space-limited applications.
ZoneGuard Mini features a compact in-line design engineered for point-of-use installation in residential and light appliance applications. The unit integrates directly into a single water supply line and operates without electricity, chemicals, or salt.
The internal catalytic crystallization media transforms dissolved hardness minerals into stable microscopic crystals. These crystals remain suspended in the water stream rather than adhering to heating elements, valves, and internal plumbing surfaces, reducing scale accumulation at the source.
Constructed with a durable stainless steel housing and certified materials suitable for potable water systems, ZoneGuard Mini is designed for long-term reliability in compact installations such as tankless water heaters, beverage equipment, under-sink supply lines, and RV water systems.
Maximum Flow: Up to 5.8 US gpm (single fixture or appliance)
Maximum Working Pressure: 145 psi
Maximum Fluid Temperature: 185°F
Connection Size: 3/8″ NPT
Housing Material: Stainless Steel
Certifications: NSF / ANSI 61 & 372
Warranty: 10 Year Limited Warranty
Designed for point-of-use protection, ZoneGuard MINI utilizes advanced catalytic crystallization technology to convert dissolved hardness minerals into harmless microscopic crystals. The system operates without chemicals, salt, electricity, or ongoing maintenance requirements.
Point-of-use scale prevention
Tankless water heaters
Coffee machines and espresso systems
Ice makers and beverage equipment
Residential fixtures and appliances
RV water systems
Under-sink or single-line installations
Complete product documentation, installation guidelines, dimensional drawings, performance certification data, and technical specifications for the Stanley Fisher ZoneGuard Mini are available within the Product Search system. Select the specific model to access detailed information and downloadable literature.
Documentation includes installation instructions, flow capacity guidance, dimensional data, material specifications, and application recommendations for point-of-use scale prevention systems.
