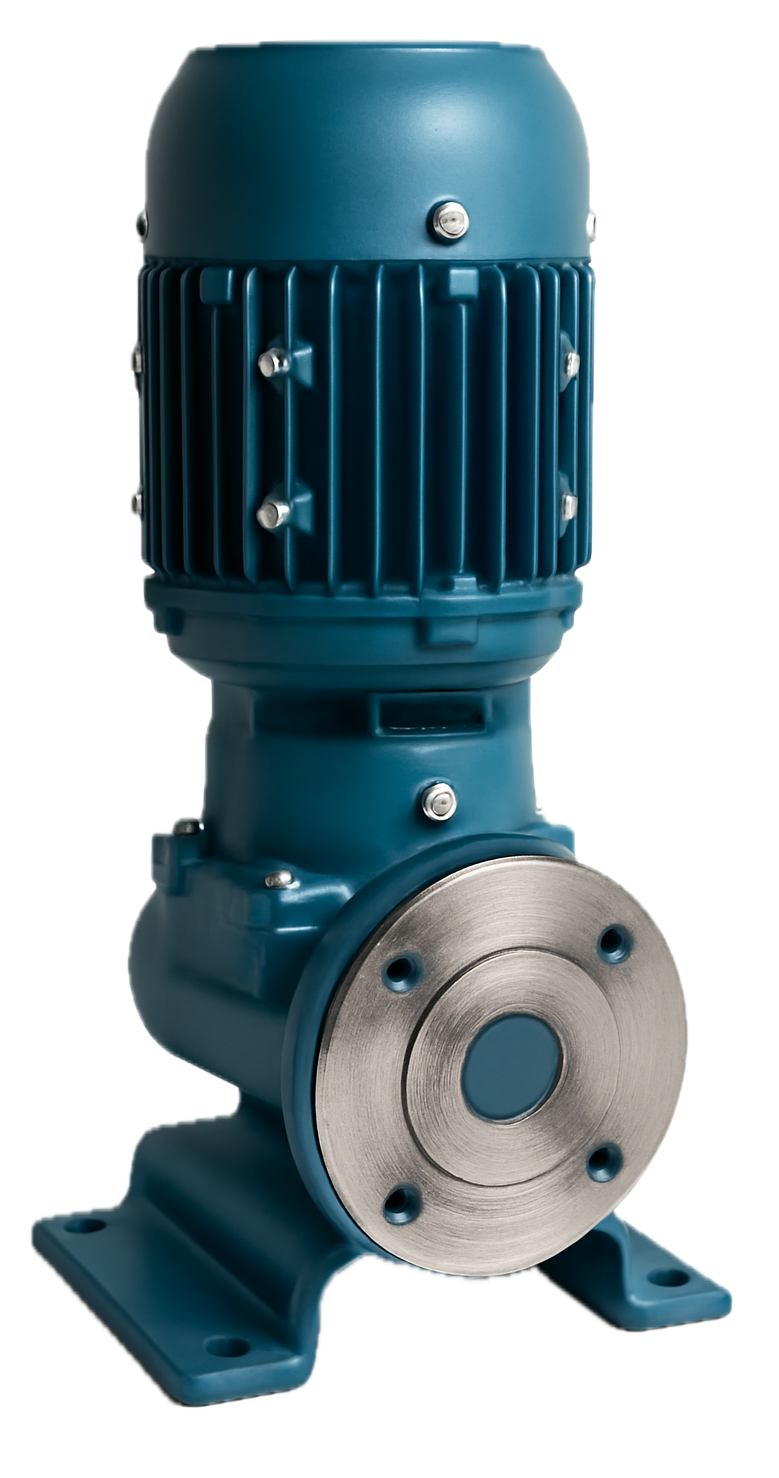

The KPL Series is a vertical in-line centrifugal pump available in close-coupled and split-coupled configurations. Units are flanged to ANSI Class 150 (PN16 equivalent) and supplied with TEFC motors for continuous-duty operation in indoor or outdoor installations.
Vertical in-line configuration permits direct installation into horizontal piping systems while maintaining a compact mechanical footprint.
Available in both close-coupled and split-coupled designs depending on serviceability and motor configuration requirements.
Flanged connections up to 6 inch, drilled to ANSI Class 150.
HVAC circulation systems
Chilled and hot water distribution
Boiler feed and circulation
Commercial building services
Industrial process water systems
District energy systems
Complete technical documentation, performance curves, dimensional drawings, and submittal data for the Stanley Fisher KPL Series are available within the Product Search system. Select a specific model to access frequency-specific technical data, engineering specifications, and downloadable literature.
Documentation includes 50 Hz and 60 Hz configurations, close- and split-coupled variants, certified performance data, and installation specifications in accordance with ANSI / Hydraulic Institute standards.
