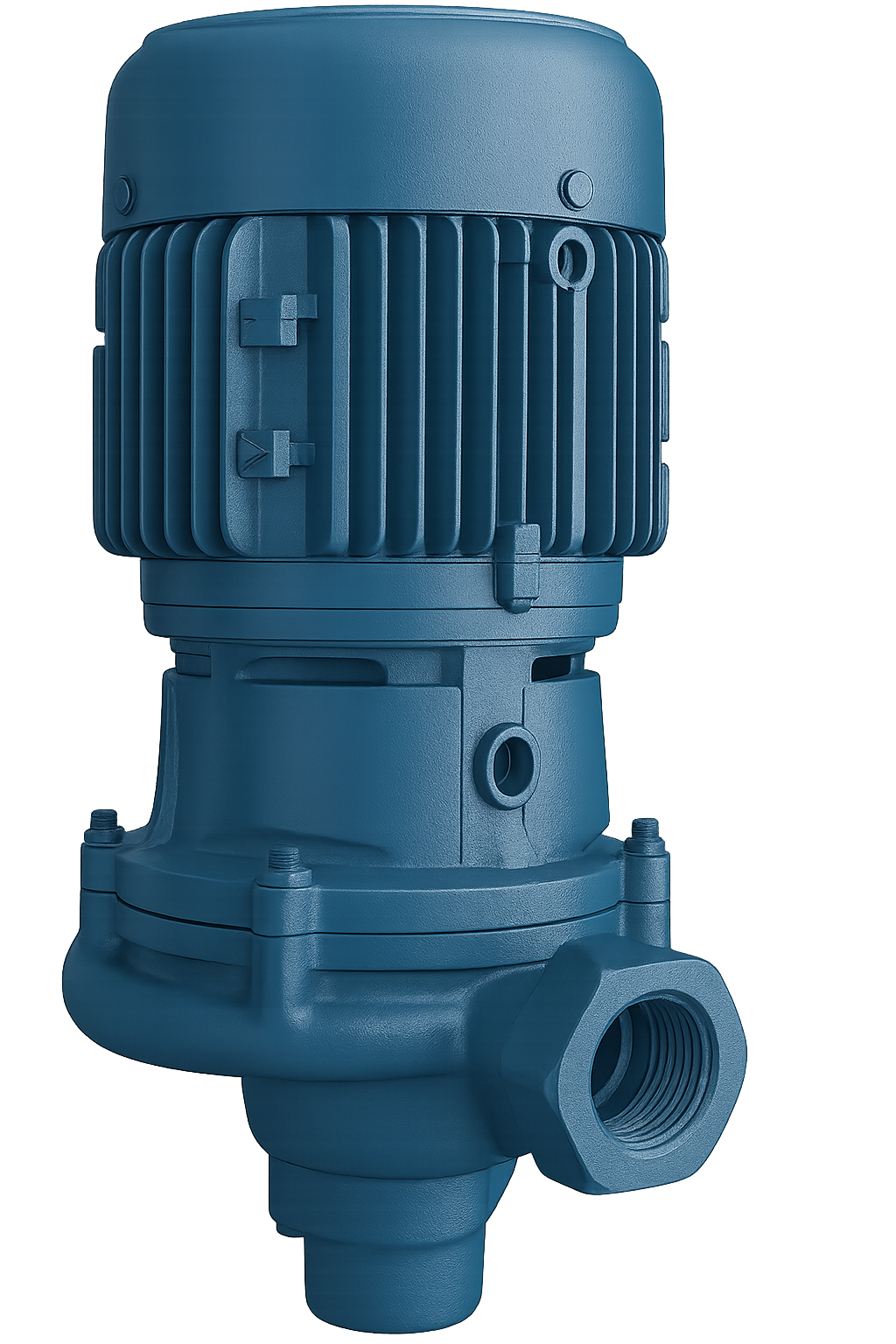

The Stanley Fisher KPA Series is available in both close-coupled and split-coupled configurations. These threaded in-line centrifugal pumps are engineered for continuous circulation of clean liquids in closed-loop HVAC, hydronic heating, and commercial mechanical systems.
Designed for direct installation into horizontal piping, the in-line configuration minimizes system footprint while maintaining hydraulic efficiency and mechanical stability. Split-coupled construction allows service access without disturbing piping connections.
KPA pumps feature FNPT threaded connections up to 1-1/4 inch and are rated for a maximum working pressure of 145 PSI (PN10 equivalent). Units are available in 50 Hz and 60 Hz configurations with 2-pole and 4-pole motor options.
Split-coupled construction allows service access without disturbing piping. In-line casing configuration installs directly into horizontal piping systems.
Threaded FNPT connections up to 1-1/4 in. Standard construction in cast iron with bronze construction available. Maximum working pressure 145 PSI (PN10 equivalent).
Closed-loop heating systems
Chilled water circulation
Boiler circulation
Commercial and industrial HVAC systems
Process circulation
Complete technical documentation, performance curves, dimensional drawings, and submittal data for the Stanley Fisher KPA Series are available within the Product Search system. Select a specific model to access frequency-specific technical data, engineering specifications, and downloadable literature.
Documentation includes 50 Hz and 60 Hz configurations, 2-pole and 4-pole motor variants, certified performance data, and installation specifications in accordance with ANSI / Hydraulic Institute standards.
