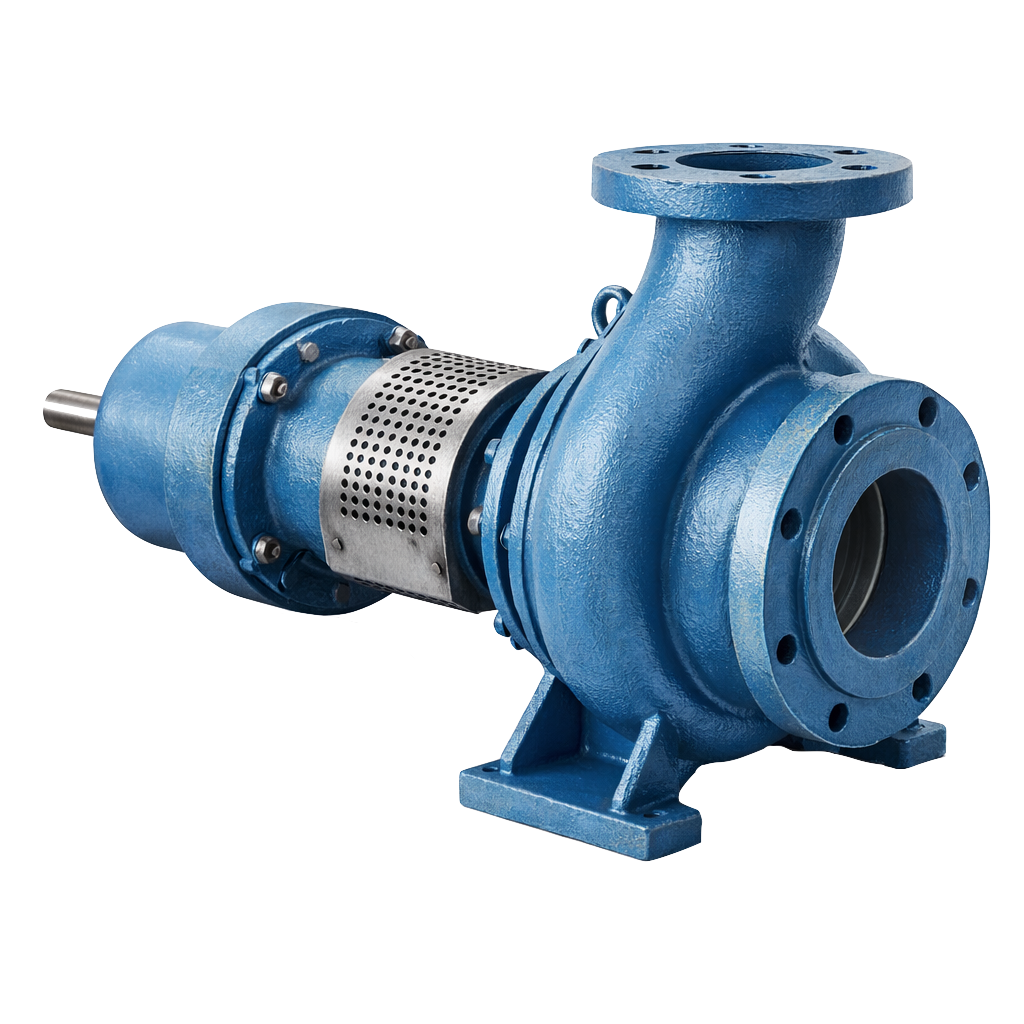

The Stanley Fisher ESF Series is a frame mounted, back pull-out end suction centrifugal pump engineered for broad duty municipal, commercial, HVAC, and industrial water transfer applications. Designed for hydraulic efficiency and long-term durability, the ESF platform delivers dependable performance across a wide operating range.
The back pull-out configuration allows the rotating assembly to be removed without disturbing the pump casing or connected piping, simplifying inspection, seal replacement, and maintenance in continuous duty installations.
ESF pumps are supplied with flanged suction and discharge connections and are available in multiple sizes and configurations for 50 Hz and 60 Hz systems. Robust cast iron construction and precision-balanced hydraulic components support reliable operation in demanding service environments.
The ESF Series features a frame mounted, back pull-out design that allows removal of the rotating assembly without disturbing the pump casing or connected piping. This configuration simplifies inspection, mechanical seal service, and internal maintenance in continuous duty municipal, HVAC, and industrial installations.
A heavy-duty bearing frame supports precision-balanced shaft and impeller assemblies, promoting stable hydraulic performance and extended bearing life across a broad operating range. Replaceable wear components and standardized mechanical seal arrangements enhance long-term serviceability and lifecycle efficiency.
Pumps are supplied with flanged suction and discharge connections and are manufactured in robust cast iron construction, with material options available to suit varying fluid characteristics and operating pressures. The ESF platform is engineered for reliable performance in general water transfer, pressure boosting, process circulation, and closed-loop system applications.
Municipal water supply and distribution
Commercial building HVAC systems
Pressure boosting systems
Industrial process water transfer
Cooling water circulation
Irrigation and agricultural water movement
General service water pumping applications
Complete technical documentation, performance curves, dimensional drawings, material specifications, and submittal data for the Stanley Fisher ESF Series are available within the Product Search system. Select a specific model to access frequency-specific hydraulic data, engineering specifications, and downloadable literature.
Documentation includes 50 Hz and 60 Hz performance curves, dimensional data, mechanical seal configurations, material options, and installation requirements suitable for municipal, commercial, HVAC, and industrial service applications.
